SPECIFICATIONS



Applicable: DLP/LCD 3D Printer



Bending Strength: 35-55Mpa

Body shrinkage: 6-8%

Breaking elongation: 8-14%

Compatibility: LCD

Density: 1.06-1.16g/cm³

Feature: Good molding, low odor, low shrinkage;

Form: Liquid

Hardness: 80-85 (D)

Material: Photosensitive Resin

Model Number: Water-Wash Resin

Name: Water Wahsble 405nm UV Resin

Packing: Box packing

Resin Type: Water-Wash Resin

Shelf Life: 2 Years

Tensile Strength: 30-50Mpa

Viscosity(25°C): 150-350/mPa.s

Wavelength: 395-405nm



Water Washable Resin Features:

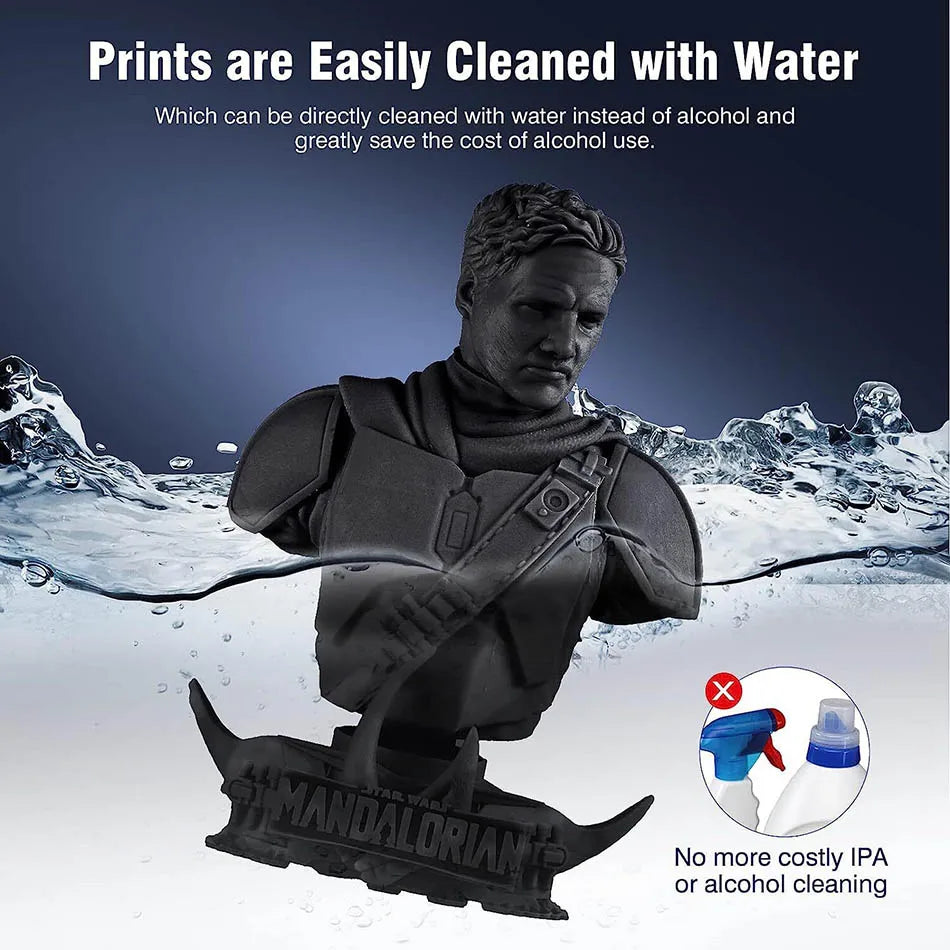

①【Water Washable Resin fast curing 3D printer water washable photopolymer resin, it can be directly cleaned with water instead of IPA/alcohol, easy to clean, save time and more economics.
②【Fast Curing 3D Printer Resin 3D resin will fast cure when it absorbs 395-405nm UV light from a resin printer(or resin curing machine), suitable for most 2K/4K/8K resin 3D printers(LCD/DLP/SLA).

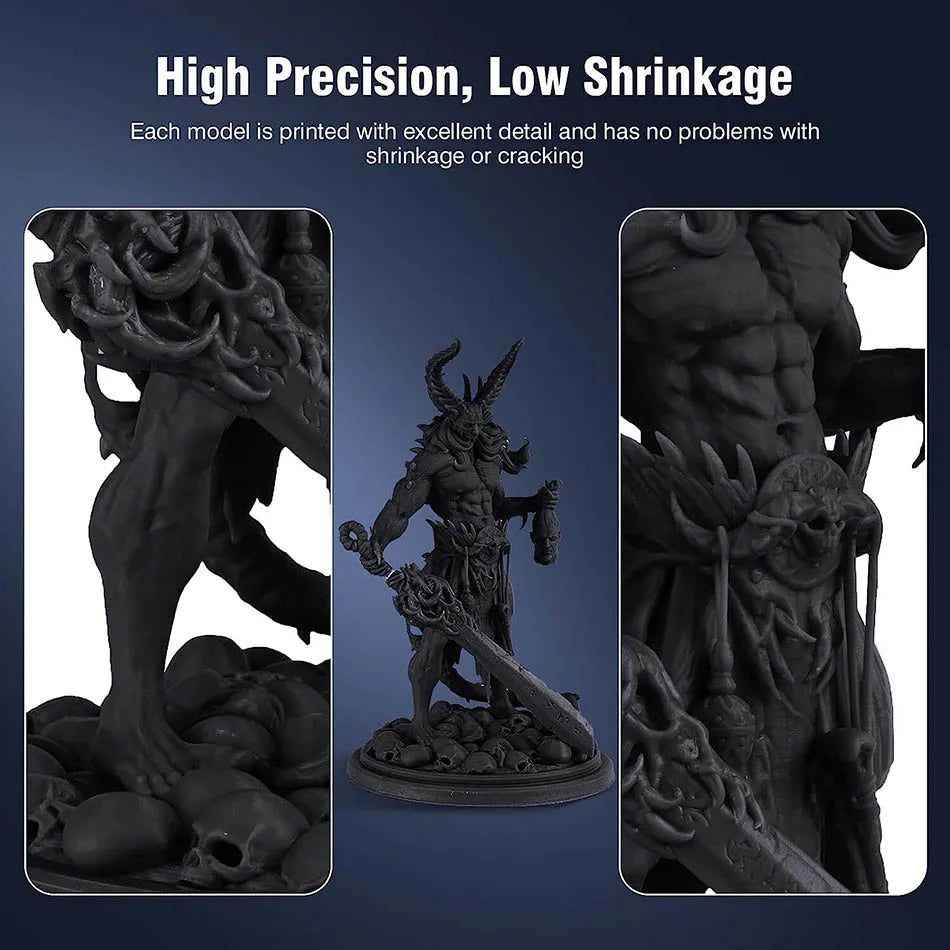

③【Low Shrinkage and High Precision】During the resin R&D, We focus on how to reduce resin volume shrinkage during curing to ensure high precision and good stability.
④【Easy to Clean and Light Odor】Resin can be cleaned with isopropyl alcohol or ethanol, which is very easy to clean and has a smooth surface. The smell is relatively light, and the resin odor will quickly dissipate after printing.

Water Washable Resin Parameter

1．Material: Water Wash Resin
2．Form: Liquid
3．Net Weight: 1000g/bottle
4．UV curing wavelength: 405nm
5．Color: black, white, gray,beige
6．Flexural modulus(MPa): 800-1100
7．Bending strength(MPa): 30-35
8. Surface hardness (Shore D): 80-85
9. Body contraction (%): 6%-8%
10. Tensile strength (MPa): 30-35MPa
11. Elongation at break (%): 8%-14%
12. Bottoms: 3-5
13. Lifting distance (mm): 6-10mm
14. Lifting speed (mm/s): 60-1200mm/s





Precautions:

1. Shake well before use. It is recommended to stand upside down three times. It is forbidden to use resin in places exposed to sunlight;

2. Do not take it orally, keep it away from children, wear gloves before use, avoid direct contact with the skin, and keep the room ventilated; do not enter the eyes, if you accidentally touch it, rinse with plenty of water as soon as possible, and seek medical attention in time if you feel unwell;

3. The printed resin model needs to be cleaned with high-concentration alcohol (recommended above 95% concentration, the higher the better) for about 30s; after cleaning, wait for the alcohol to dry and then perform secondary curing, so that the best performance can be obtained;

4. Do not pour the used resin in the trough back into the unused resin, and do not leave the resin in the trough for a long time without use. The contamination of the resin affects the printing effect;

5. Store in the dark at room temperature. The sunlight contains ultraviolet rays, which will cure the photosensitive resin; it is recommended to store it at an ambient temperature of 15-35 °C. The lower the temperature in winter, the higher the resin viscosity;

6. Sealed storage to avoid dust or moisture, which will affect the print quality
