SPECIFICATIONS

Cleaning Size(With platform): 165*100*165mm/ 6.5*3.9*6.5 inch

Input Voltage: 100-240V 50/60Hz

Machine Size: 216*217*310 mm/8.5*8.5*12.2 Inches (L*W*H)

Machine Weight: 2.7 kg/5.9 lbs

Maximum Cleaning Size(Without platform): 165*100*180mm/ 6.5*3.9*7.1 inch

Maximum Curing Size: Dia.160*180mm/ Dia. 6.2*7.08 inch

Rated Power: 36W

Time Setting: 1-30mins

Wireless Connectivity: None



Refresh Your Post-process Experience

Volume-upgraded | Gooseneck Lights | IPA-saving



Larger Size for Upgraded Capacity

Compared to Anycubic Wash & Cure 2.0, the Anycubic Wash& Cure 3 has an impressive 100% increase in cleaning basket capacity, now at 3 liters. The total volume of the cleaning bucket has been expanded to 4 liters. This makes it perfectly tailored for LCD (light-curing) 3D printers with a size of 7.3 inches or less.

Localized Strengthening, Uniform Curing

The "Innovative Flexicure Gooseneck Light Design" increases the energy value by 30,000uW/cm² within a 1-3 cm irradiation range, significantly strengthening the curing effect on subtle areas such as the top of models and the hem of garments.

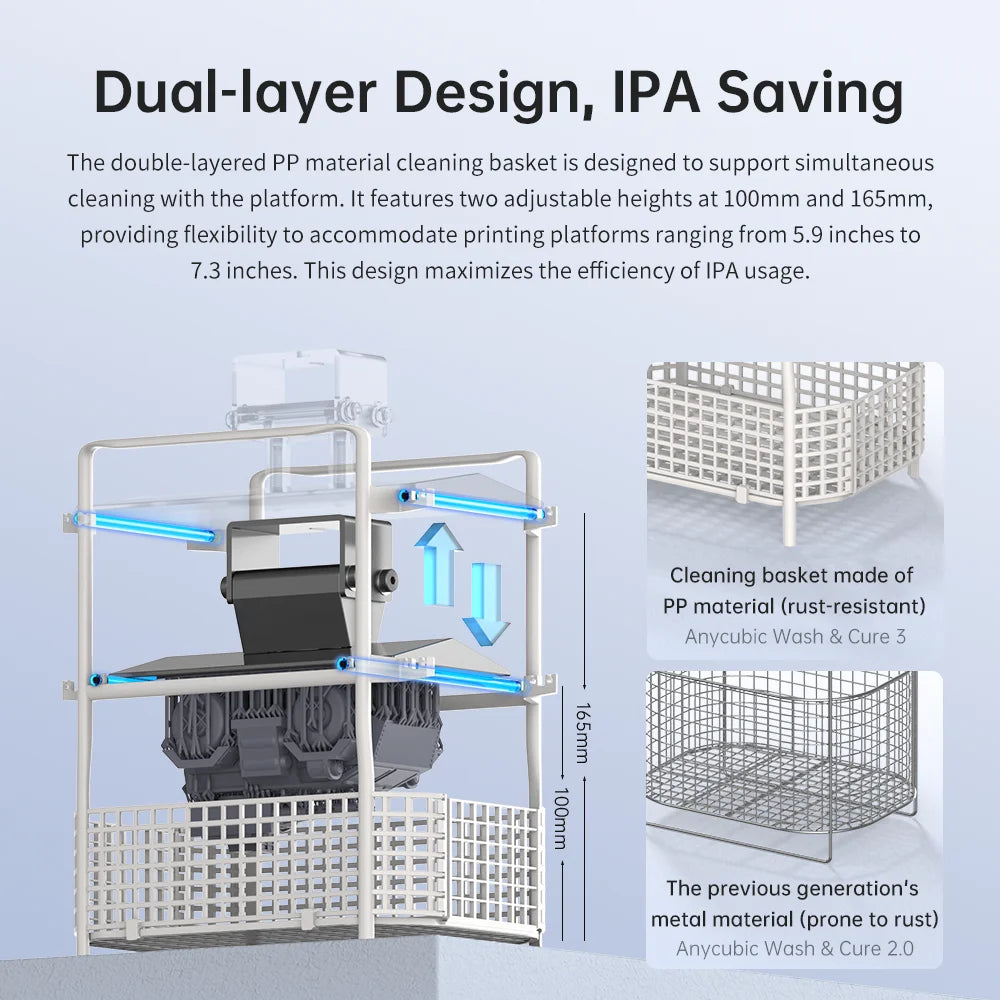

Dual-layer Design, IPA Saving

The double-layered PP material cleaning basket is designed to support simultaneous cleaning with the platform. It features two adjustable heights at 100mm and 165mm, providing flexibility to accommodate printing platforms ranging from 5.9 inches to 7.3 inches. This design maximizes the efficiency of IPA usage.

Simple Operation, Quiet and Efficient

Cleaning and curing dual modes, easily selected with one click; Enhanced Gooseneck light curing mode can be easily toggled on and off with one click. Infinite rotary knob control, adjustable from 1 to 30 minutes at will.

Through a more sealed structural design and software optimization, the noise interference generated during cleaning and curing is reduced[1], creating a quieter and more comfortable working environment.

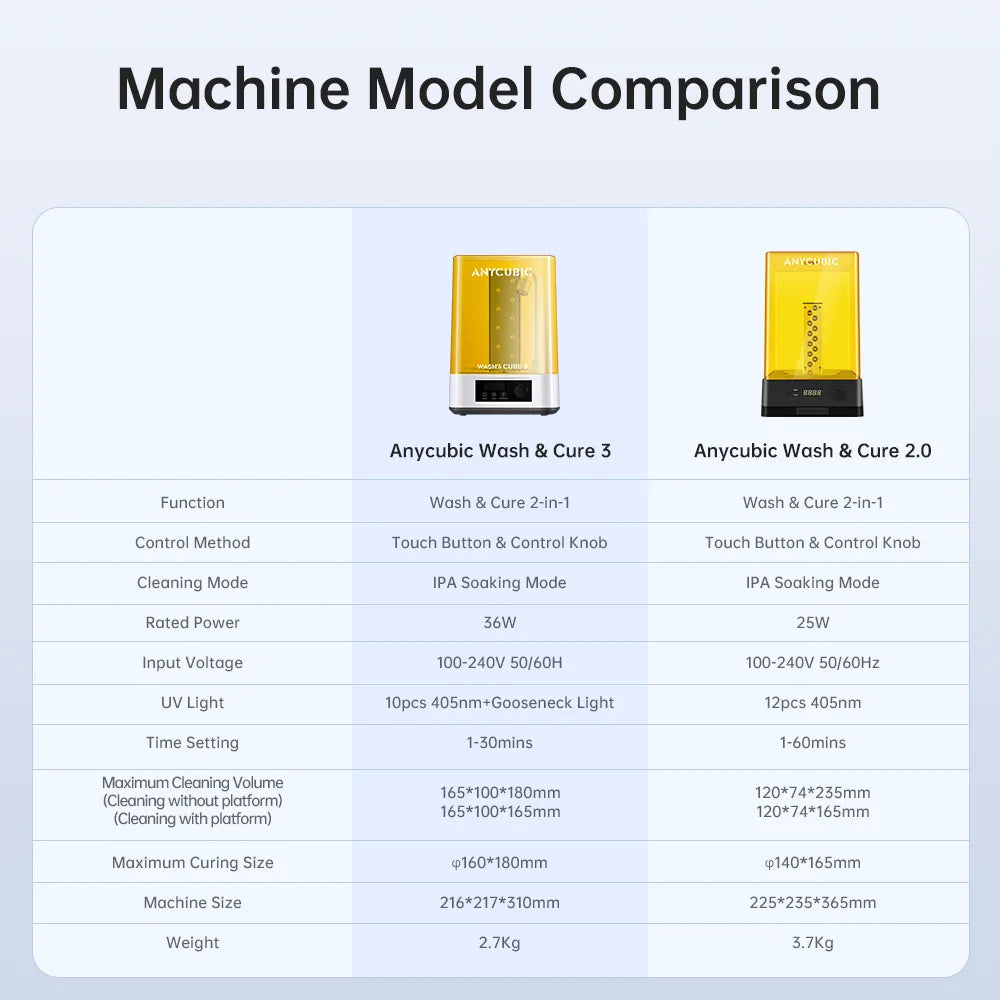

Machine Model Comparison

Model Display

Product Parameters

Cleaning Size(With platform): 165*100*165mm/ 6.5*3.9*6.5 inch

Maximum Cleaning Size(Without platform): 165*100*180mm/ 6.5*3.9*7.1 inch

Maximum Curing Size: φ160*180mm/ φ6.2*7.08 inch

Machine size: 216*217*310 mm/ 8.5*8.5*12.2 Inches (L*W*H)

Machine Weight: 2.7 kg/ 5.9 lbs

Suitable Model: Photon Mono 2/ Photon D2
