SPECIFICATIONS



Body Material: ABS

Features: Fluctlight anti-monitoring series

Installation Method: Self-Contained

Is Bulbs Included: Yes

Is Dimmable: Yes

Light Source: LED bulbs

Power Source: Solar

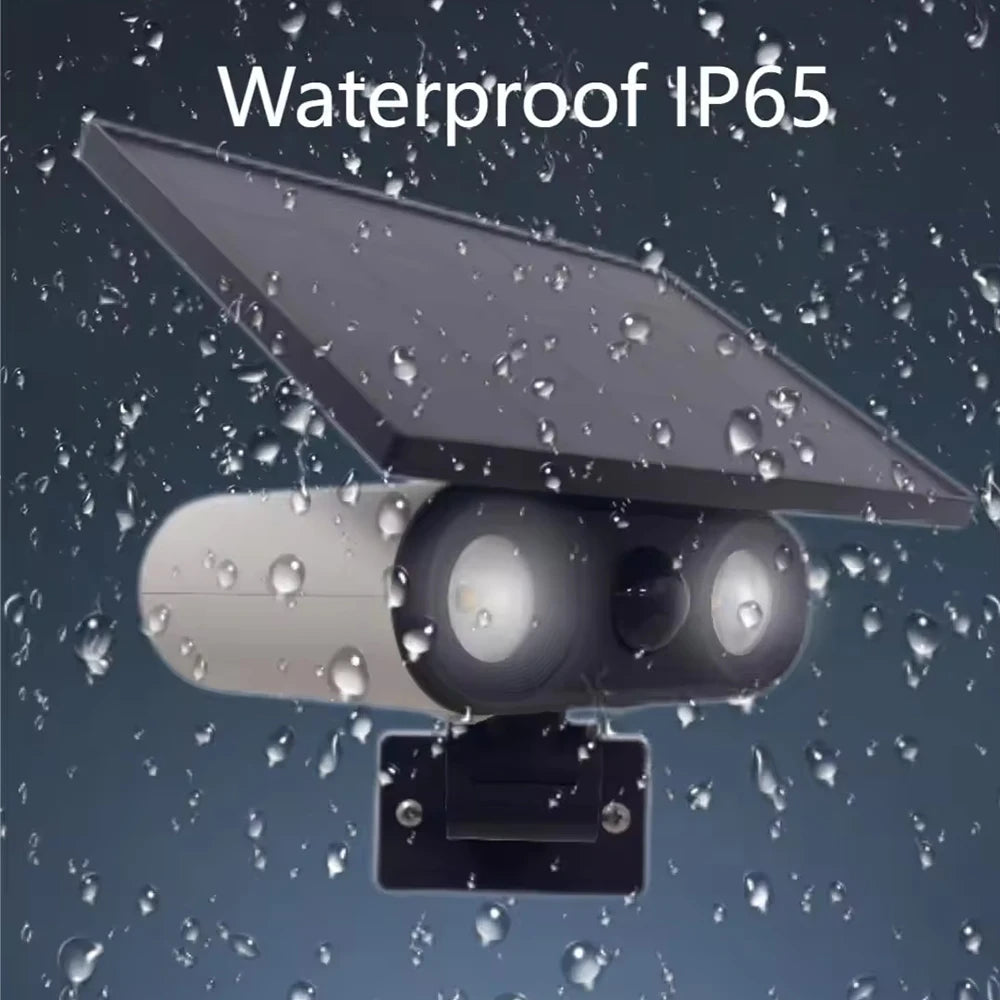

Protection Level: IP65

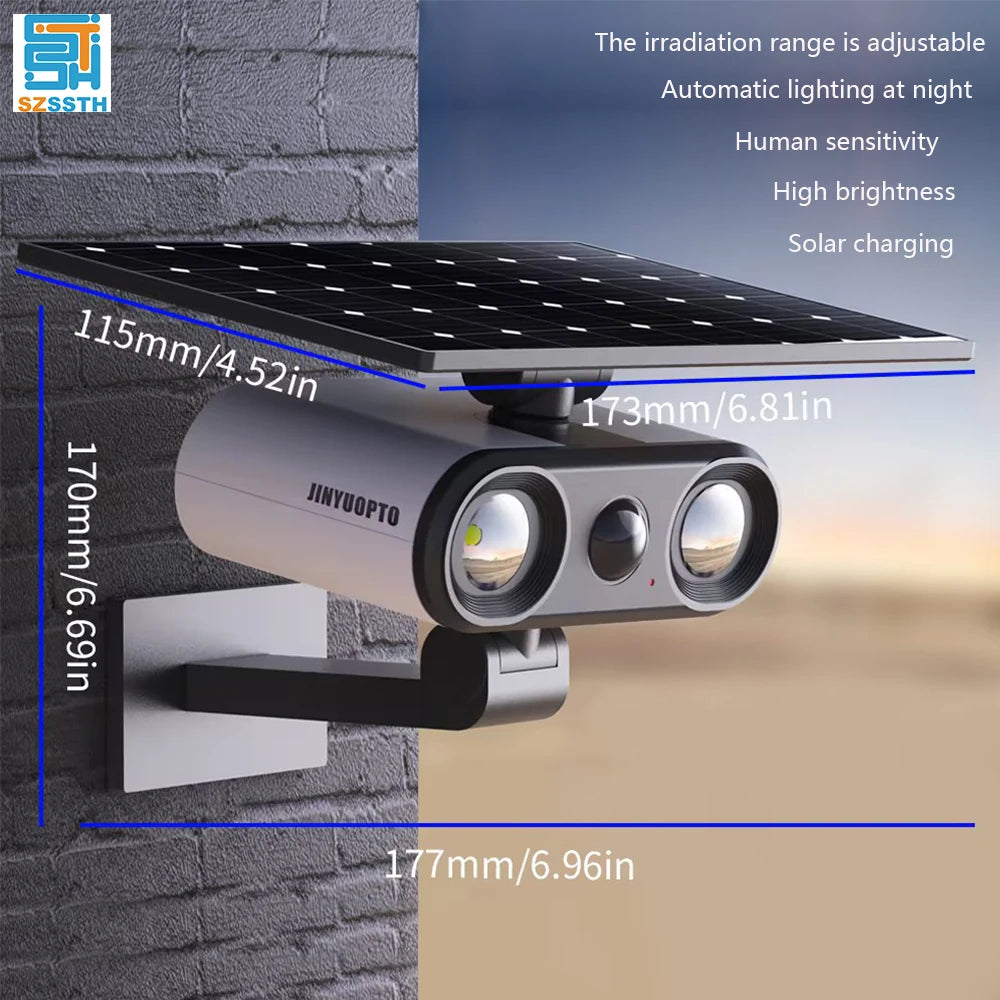

Size: 10m

Solar Cell Type: Lithium Battery

Style: ART DECO

Use: EMERGENCY

Voltage: 5V

Installation Instructions:

1. With a mounting base for easy installation and removal.

2. Mount the base on the building wall or outdoor bracket,

and fix the solar body sensor light through the bracket.

3. You can adjust the angle of the spotlight.

The best angle of the solar panel is about 20 degrees.

According to the actual situation of the site, the spotlight adjustment range is 45 degrees up and down, left and right.

Function description

1. Press the POWER button to start the product power supply.

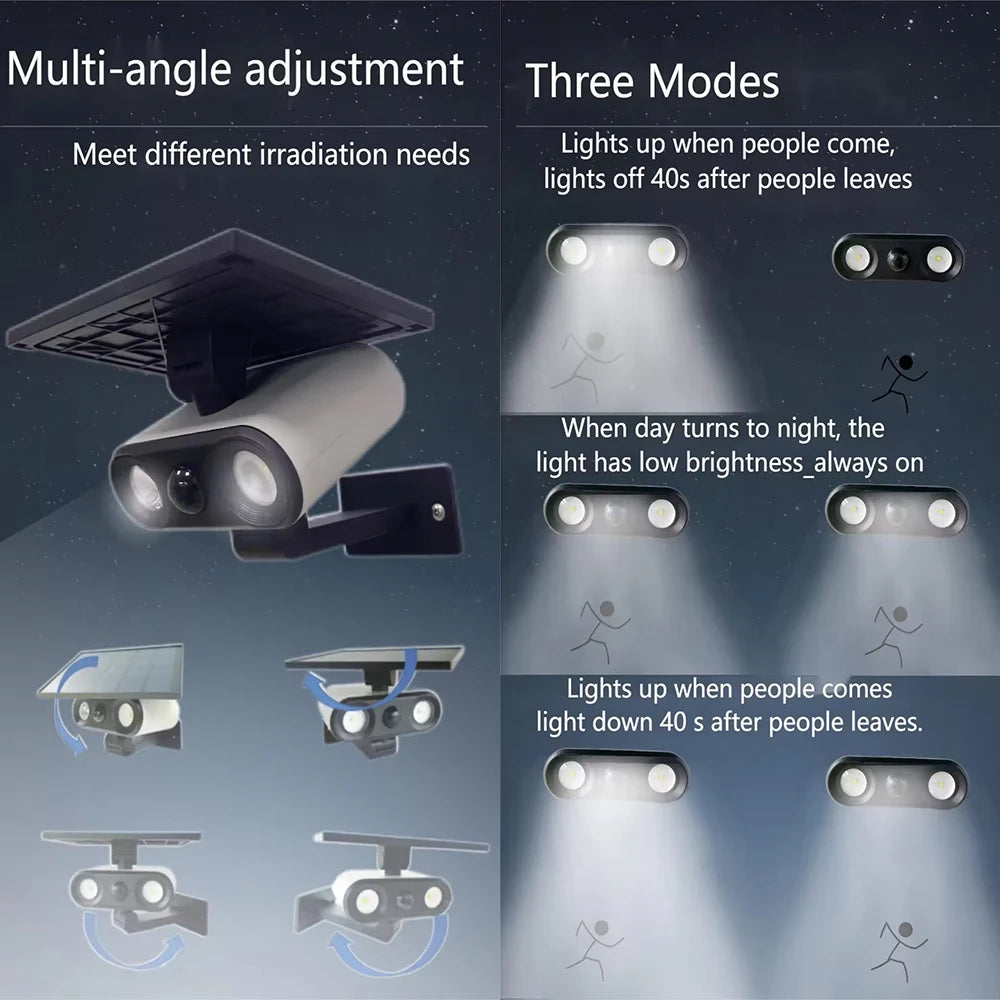

2. Press the MODE button to enter the function mode selection.

Mode 1: lights up when people come, lights off when no one.

Mode 2: Long until dawn.

Mode 3: high light when people come, low light when no one.

 At night, people close to the sensor light within 10 meters, light on; People leave,light goes off

after 30 seconds.





Base set

1. 1pcs 18650_3.7V 1500hmA lithium iron phosphate battery for power supply.

2.1 PCs 5V_2.5 W polycrystalline high-efficiency solar panels.

3. 2pcs_4w 3535 high light patch led _ color temperature 5000K, display finger 80.(with 2 convex lenses)

4. 1pes PIR human body pyroelectric infrared sensor.

5. 1pcs power ON/OFF switch(POWER key).

6. 1PCs function mode selection switch (MODE key).

7. 1pcs red/green/blue three-color indicator light_for product function mode selection indication.

8. The product supports solar charging, light control, and human body induction to trigger lighting functions.

9. PCBAholds lithium battery charge/discharge protection module.

Function description

1. The product is installed and fixed on any building wall or outdoor support by tightening the expansion rubber plug with 2 screws on the base.

2. Installation location_Choose a location with sufficient sunlight so that the solar panel can better face the sunlight.

3. Press the POWER button, the solar panel receives sunlight to recharge the lithium battery, at the same time, the product's human body sensor brightness function is turned on.。

4. Press the MODE button to select the product function mode, and at the same time the corresponding indicator light is on for 5 seconds and then goes out; indicating the user's function selection.

5. Notice: The product is powered on for the first time, and the default function mode ofthe program is 1.

6. Red light indication_Mode 1.(The product enters the induction mode, and if someone senses at night, the LED light will be bright for 40 seconds and then turn off).

7. Green light indication_Mode 2.(The product enters the constant light mode, when the day tuns to night, the LED light is low brightness_steady light).

8. Blue light indication_Mode 3.(The product enters the sensing mode, when someone senses at night, the LED light is bright for 40 seconds, and the LED light is low brightness_steady on when no one is there).

9.The solar panel and the main light can be rotated left, right, up and down respectively, which is convenient for user experience and the choice oflighting orientation.。
