SPECIFICATIONS

Items: Laser Marking Machine 30W 50W

Laser Power: 30W, 50W

Minimum line width: 0.01mm

Repetition precision: ±0.0001mm

Scanning Speed: 10000mm/s

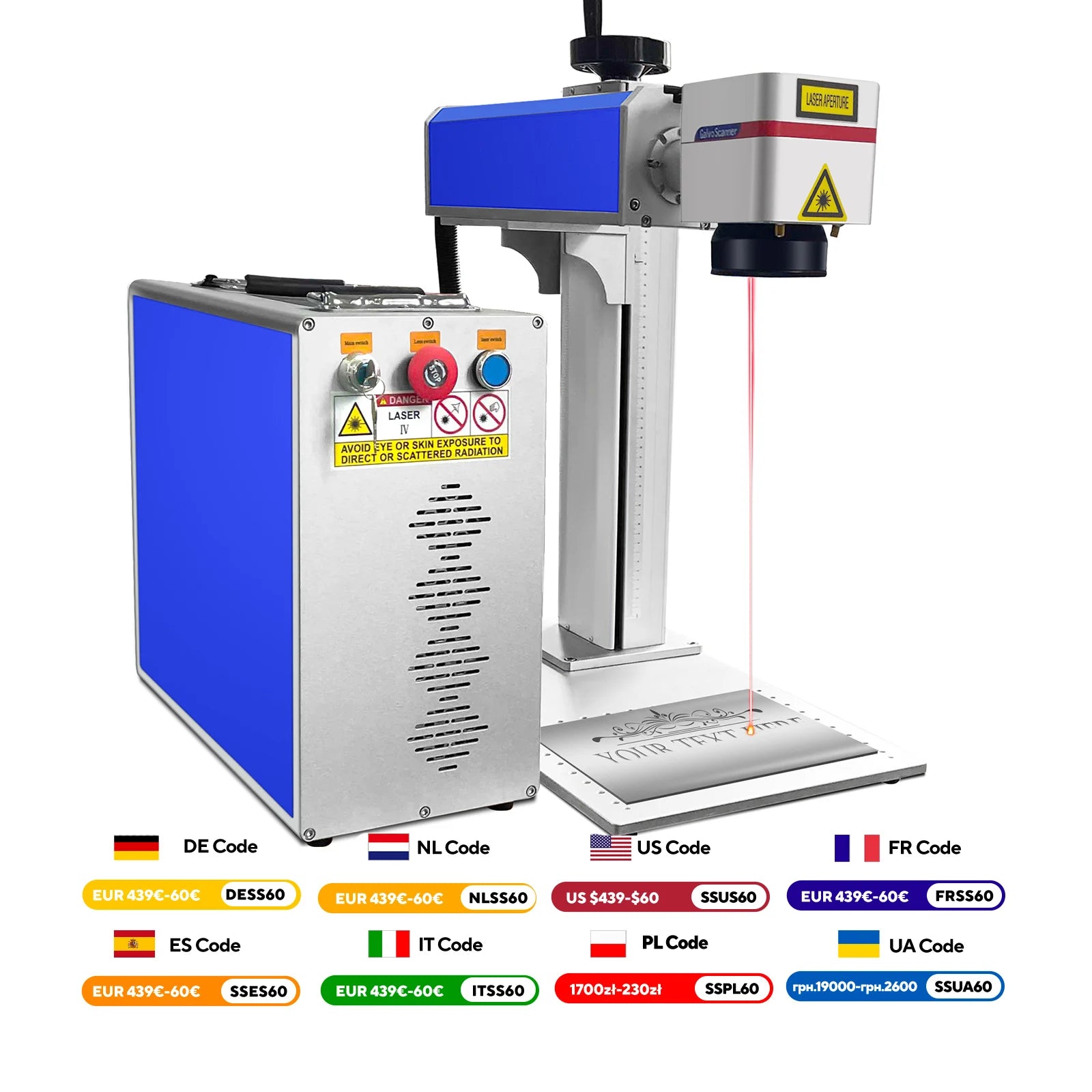

A portable fiber laser marking machine can be marked on metal and some non-metal materials, marking out the text clearly and permanently, and will not fade off. Using air-cooled cooling, the whole machine is small, the output beam quality is good, high reliability. Raycus brand laser has a long service life, maintenance-free, 100,000 hours without supplies, no power coupling loss, saving operating costs. Adopt contactless processing, will not cause pollution to the environment.

• Precision marking

• Portable and energy-saving

• Powerful Software

• Precision Marking

Fiber laser life can reach 100,000 hours. High beam quality, base mode (TEM00) output, focused spot diameter less than 20um. The divergence angle is 1/4 of the semiconductor pump laser, a single line is finer.

Galvanometer system

High-speed digital scanning oscillator system, fast processing speed, 2-3 times faster than traditional marking machine, optical scanning oscillator, high laser repetition frequency, high speed without distortion.

Portable and energy-saving

Small size, low power consumption, the whole machine consumes less than 500W; built-in air-cooled cooling method, abandoning the bulky water-cooled unit, covering a smaller area and easier installation.

Elaborate lifting wheel

Equipped with a hidden lifting rod for high positioning accuracy. The wheel can be used to adjust the height of the galvanometric system, and the small handle on the wheel facilitates adjustment

Equipped with an optical isolator, effectively shielding the reflected light, it can completely operate on gold, silver, copper, aluminum, silicon, and other high-bright surfaces and highly reflective materials without deviating from the positive center of the field mirror, which greatly broadens the application field. And for different metals, through frequency and energy adjustment, it can act out a certain color.

Specifications

• Power Supply: 110V(US/CA/MX)/220V(EU/RU/UK/AU)

• Beam Quality: <1.6

• Output Power:30W/50W

• Maximum Marking Line Speed: 10000mm /

• Laser Wavelength: 1064nm

• Marking Range:150mm*150mm/200mm*200mm

• Laser Repetition Frequency: 40KHz-60KHz/50KHz-100KHz

• Maximum Single Pulse Energy: 0.75(mJ)/1(mJ)

• Power Adjustment Range: 10%-100%

• Minimum Character: 0.15mm

• Marking Depth: 0.01-1.0mm

• Repeat Accuracy: ±0.0001mm

• Minimum Line Width: 0.01mm

• Power Consumption of The Machine: ≤500w

• Cooling System: air-cooled

• Control Interface: USB

• Continuous Working Time: Can work continuously

Package Content

• 1 x Laser Marking Machine

• 1 x Goggles

• 1 x Foot Switch

• 1 x Display Bracket

• 1 x Repair Tool

• 1 x Instructions

• 1 x U Disk

• 1 x Positioning Tool

• 1 x Power Input Line

• 1 x Data Transmission Line

• 1 x Connection

• 1 x Marking Samples
