SPECIFICATIONS

Engraving Area: 12x8in (300x200mm)

Feature1: Durable Quality

Feature2: High Precision

Feature3: owerful Performance

Feature4: High Compatibility

Laser Power: 40W

Operating Temperature: c32-113F (0-45C)

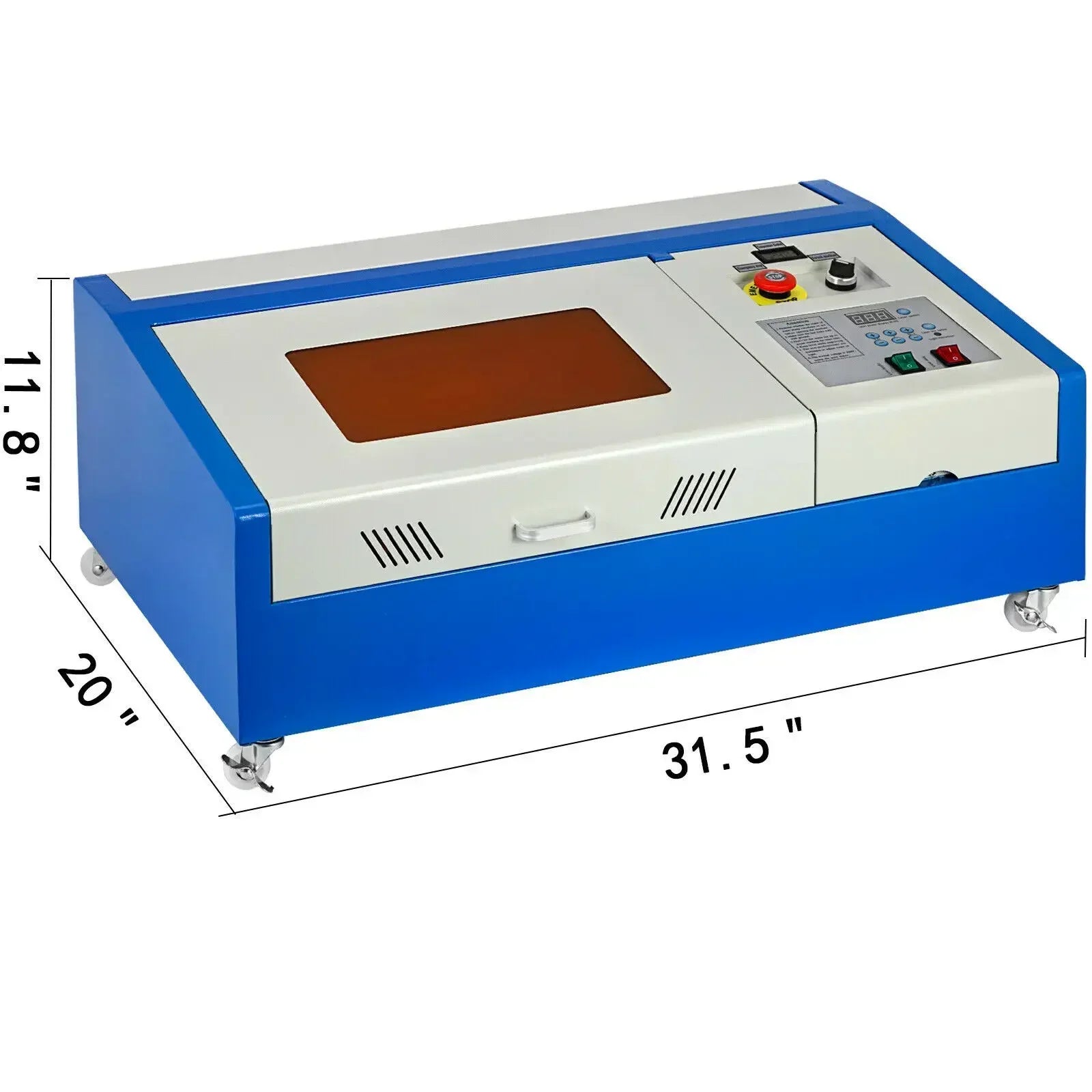

Product Dimensions: 31.4 X 19.6 X 9.8in.(800x500x250mm)

Product Weight: 30Kg/67lb (shipping 38kg/80lb)

Resetting Positioning: ≤0.0004 in (0.01mm)

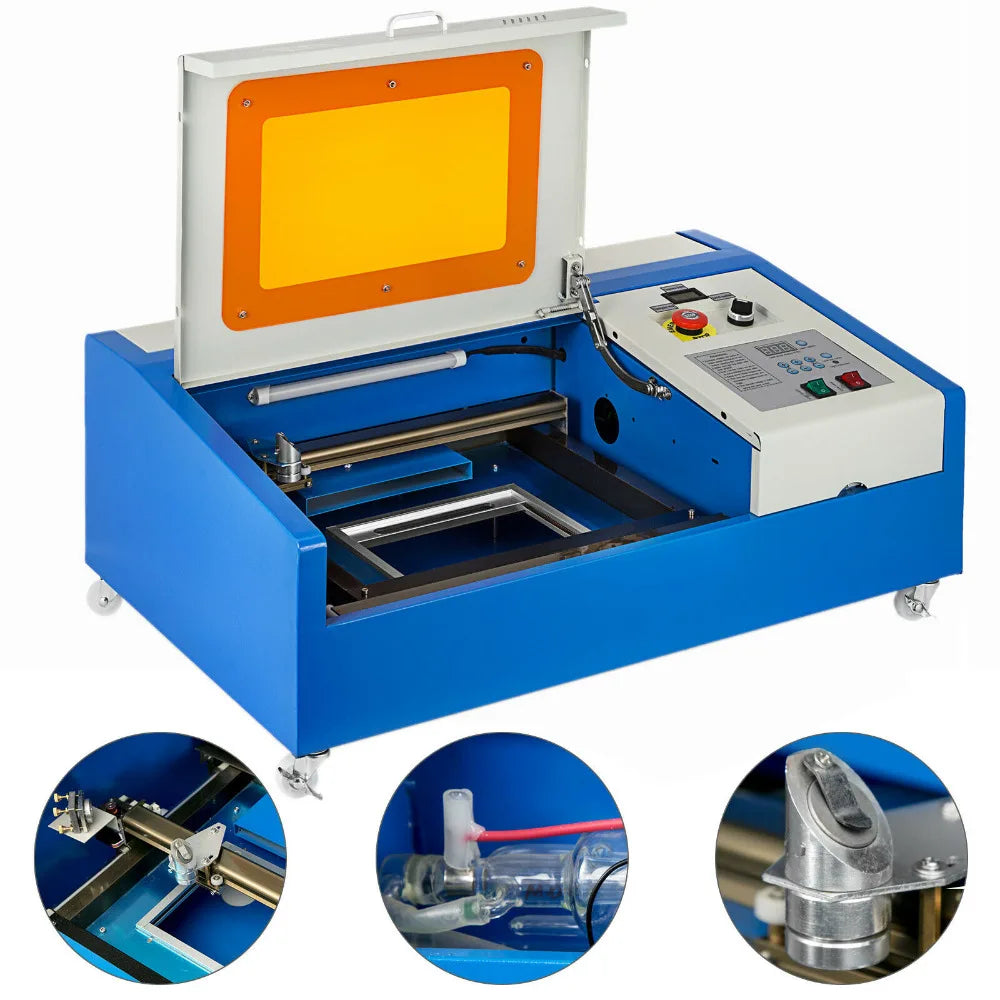

40W CO2 Laser Engraving Machine
This CO2 engraving machine integrates the newest light, machine, and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver. This brand new  CO2 laser engraver is equipped with one 40W water cooling laser tube, a high-precise stepping motors, and a high-quality control board. It employs a USB port and thus can be connected to your laptop or desktop. With the support of included software CorelDraw, this machine can work well with multiple graphic formats, including EMF/JPG/PLT/WMF. CorelDraw has both NewlySeal and NewlyDraw so that it can be employed in both carving and cutting works.
Note: This engraving machine can't carve metals without alumina coatings. It can only cut non-metallic materials with a thickness of 3 mm and below.

Applicable Material:Wood, paper, leather, cloth, Plexiglas (cuts rather shallow on normal glass), epoxy resin, density board, double-colored board, marble, plastic, rubber, crystal, bamboo and other nonmetal materials.All laser engraving machines can not carve / cut metal or ceramics.

This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, shoemaking, furniture, industry, craftwork, nameplates decorations, woodcut and other industries.

This machine integrates the newest light, machine and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver.

• USB Port to Computer.

• CorelDraw Software Included. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.

• High Precision Stepping motor makes engraving more precise.

• This machine supports any kind of model printer, the scanner.Be compatible with TIF international standard fonts and BMP/JPG/JPEG/WMF/EMF/PLT.

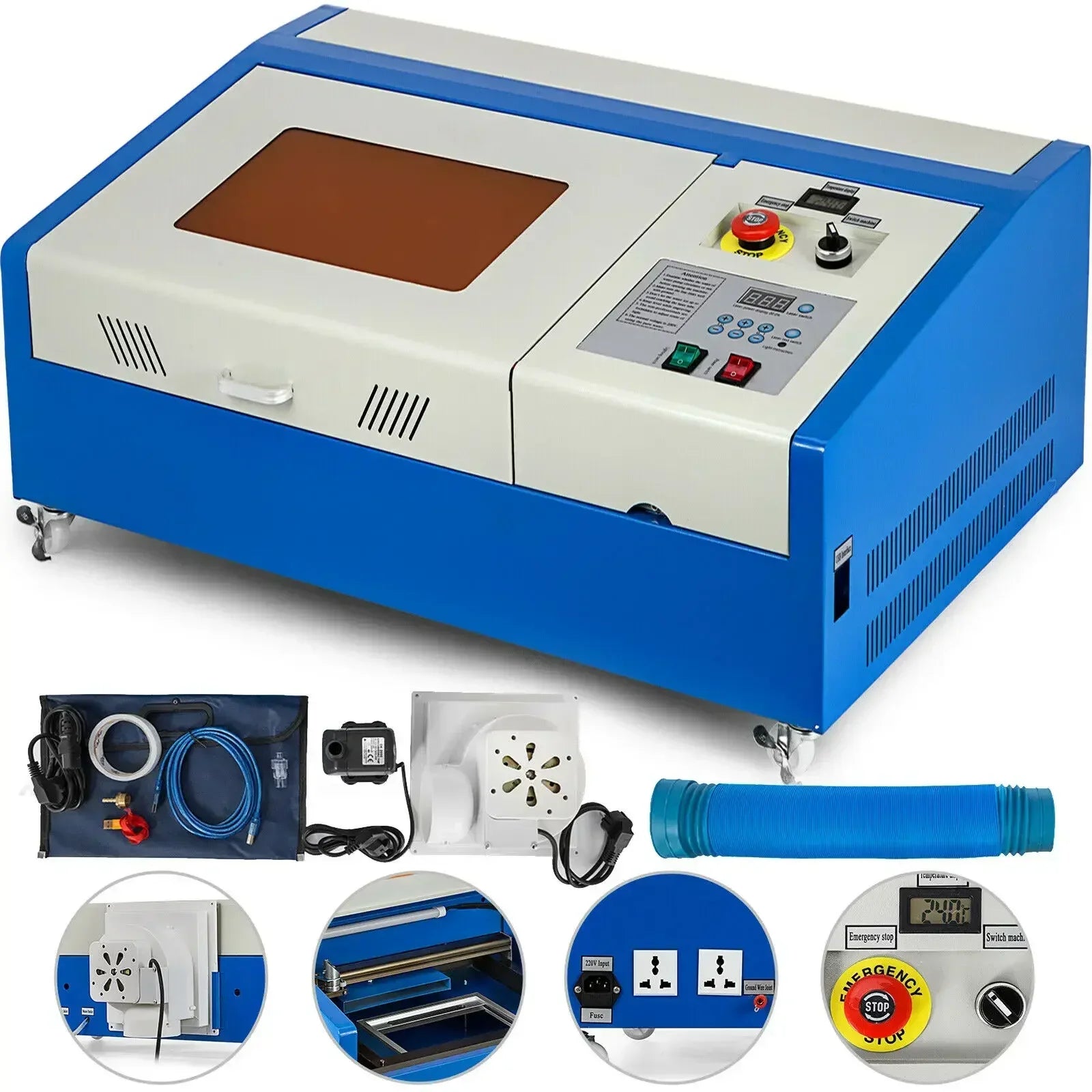

Package Details:

• 1 x CO2 LASER Engraver

• 1 x Water Pump

• 1 x Smoke Pipe

• 1 x Smoke Fan

• 1 x Power Wire

• 1 x USB Cable

• 1 x USB Key

• 1 x Accessory Bag

• 1 x Instruction Video

• 1 x English User Manual























.
